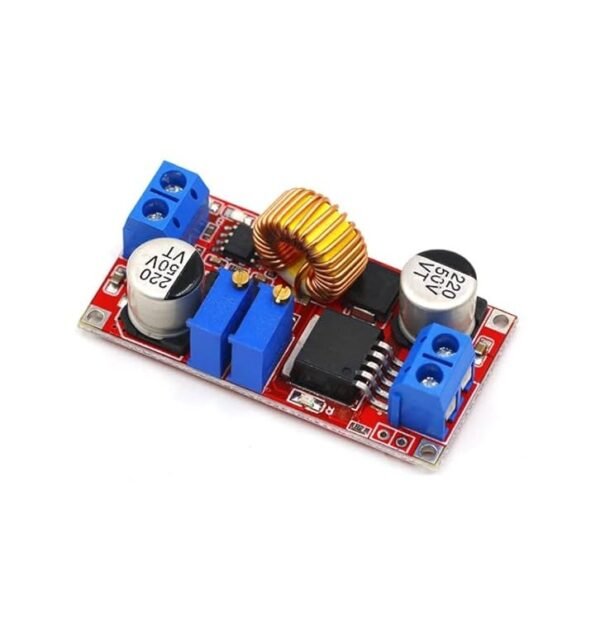

XL4015 5A DC-DC Buck Converter

✅ Input Voltage: 8 – 36V DC
✅ Output Voltage: 1.25 – 32V DC (adjustable)
✅ Maximum Output Current: 5A (adjustable)
✅ Voltage Regulation: ±2.5%
✅ Load Regulation: ±0.5%
✅ Output Ripple: ≤50 mV (20 MHz bandwidth)
✅ Switching Frequency: 300 kHz
✅ Conversion Efficiency: Up to 95%
✅ Module Type: Non-isolated constant voltage & constant current (CV/CC)
✅ Rectification: Non-synchronous
✅ Operating Temperature: -40 °C to +85 °C
✅ Dimensions: 51 × 26.3 × 14 mm
