The PAM8403 is a miniature stereo power amplifier board capable of delivering 3W per channel at 5V into 4Ω speakers with high efficiency (~90%). It features a potentiometer with integrated switch to control both volume and power, making it ideal for portable electronics and battery-powered devices. The board can be powered via USB (5V) or a suitable DC source. Users should ensure the operating voltage stays below 5.5V and avoid reversed connections, as the module lacks protection and can be damaged if incorrectly wired.

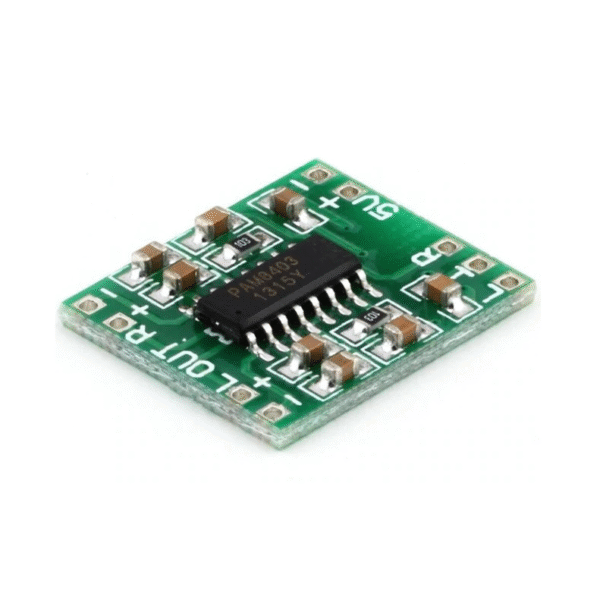

PAM8403 3W x 2 Stereo Amplifier Board (5V)
Rs 130.00
✅ Operating Voltage: DC 3–5.5V
✅ Maximum Output: 3W × 2 (5V, 4Ω)
✅ Efficiency: 90%
✅ Compact Size: 30 × 22 × 16 mm (excluding potentiometer handle)
✅ Potentiometer with switch for volume control and power on/off
✅ Suitable for battery-powered or portable electronics projects
2 in stock
| Weight | 15 g |
|---|---|
| Dimensions | 30 × 22 × 16 mm |
