The LM2596 buck converter is a high-efficiency step-down voltage regulator capable of driving loads up to 3A. Its high switching frequency (150 kHz) allows for compact filtering components, while built-in compensation simplifies external circuitry. Suitable for powering electronics requiring a stable, adjustable DC voltage with minimal ripple and high reliability.
LM2596 DC-DC Buck Converter Module
Rs 220.00
✅ Input Voltage: 4.5 – 35V DC
✅ Output Voltage: 1.3 – 30V DC (adjustable, or fixed versions: 3.3V, 5V, 12V)
✅ Maximum Output Current: 3A
✅ Conversion Efficiency: Up to 92%
✅ Switching Frequency: 150 kHz
✅ Output Ripple: ≤ 50 mV (20 MHz bandwidth)
✅ Load Regulation: ±0.5%
✅ Voltage Regulation: ±2.5%
✅ Operating Temperature: -40 °C to +85 °C
✅ Module Type: Non-isolated constant voltage step-down
✅ Rectification: Non-synchronous
2 in stock
| Weight | 15 g |
|---|---|
| Dimensions | 40 × 20 × 10 mm |
Be the first to review “LM2596 DC-DC Buck Converter Module”
Related products
-
Breadboard Power Supply Module (5V/3.3V)
Rs 200.00 -
L7805CV 5V Linear Voltage Regulator (TO-220)
Rs 55.00 -

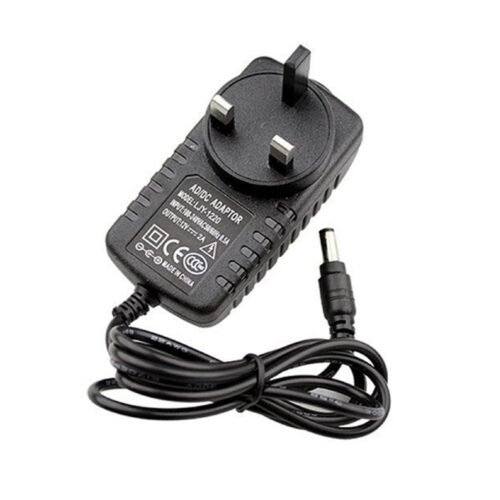

12V 2A Power Adapter
Rs 600.00 -

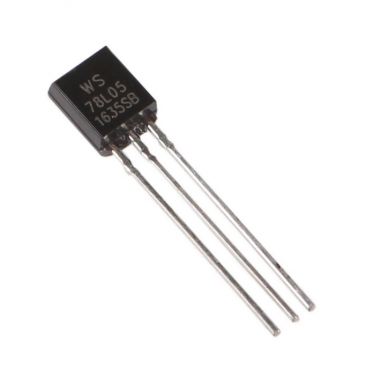

78L05 5V Linear Voltage Regulator (TO-92)
