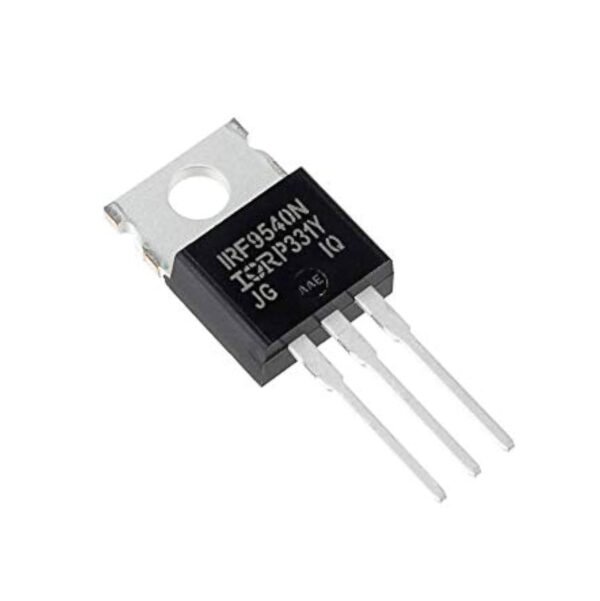

IRF9540n P-channel Power MOSFET

IRF9540n P-channel Power MOSFET

Rs 200.00

✅ Type: Power MOSFET
✅ Model: IRF9540NPbF
✅ Technology: HEXFET® Power MOSFET
✅ Polarity: P-Channel
✅ Package: TO-220AB
✅ Drain-to-Source Voltage (Vdss): –100 V
✅ Continuous Drain Current (Id): –23 A
✅ On-Resistance (Rds(on)): 0.117 Ω
✅ Maximum Junction Temperature: 175 °C
✅ Switching Speed: Fast Switching
✅ Avalanche Rating: Fully Avalanche Rated
✅ Lead-Free: Yes
✅ dv/dt Capability: Dynamic dv/dt Rated

10 in stock

SKU: AV10208 Category: Tags: , ,

The IRF9540NPbF is a fifth-generation P-channel HEXFET® Power MOSFET from International Rectifier, designed with advanced processing technology to deliver very low on-resistance and high ruggedness. With a drain-to-source voltage of –100 V and a continuous drain current capability of –23 A, it provides reliable performance in demanding power applications.

Its fast switching speed, avalanche energy handling, and thermal efficiency make it suitable for a wide variety of industrial and commercial uses. Packaged in the popular TO-220AB form factor, the IRF9540NPbF combines low thermal resistance and ease of use, ensuring high acceptance across power electronics designs.

Weight 10 g
Dimensions 33.5 × 25.5 × 10 mm
