This module measures distance using ultrasonic waves. When a 10 µs TTL trigger pulse is applied, the sensor emits eight 40 kHz ultrasonic bursts and waits for the echo. The duration of the high-level echo output corresponds to the time taken for the pulse to return, allowing the distance to be calculated using the speed of sound (340 m/s). It is widely used in robotics, obstacle detection, and automation projects.

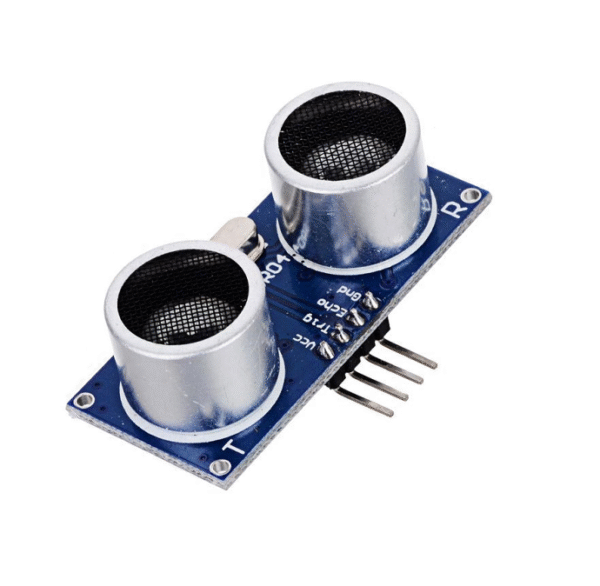

HC-SR04 Ultrasonic Sensor Module
Rs 250.00
✅ Type: Ultrasonic Distance Sensor
✅ Operating Voltage: DC 5V
✅ Operating Current: 15 mA
✅ Measuring Angle: 15°
✅ Minimum Range: 2 cm
✅ Maximum Range: 4 m
✅ Working Frequency: 40 Hz
✅ Trigger Input: 10 µs TTL pulse
✅ Echo Output: TTL proportional signal
9 in stock
| Weight | 15 g |
|---|---|
| Dimensions | 45 × 20 × 15 mm |
