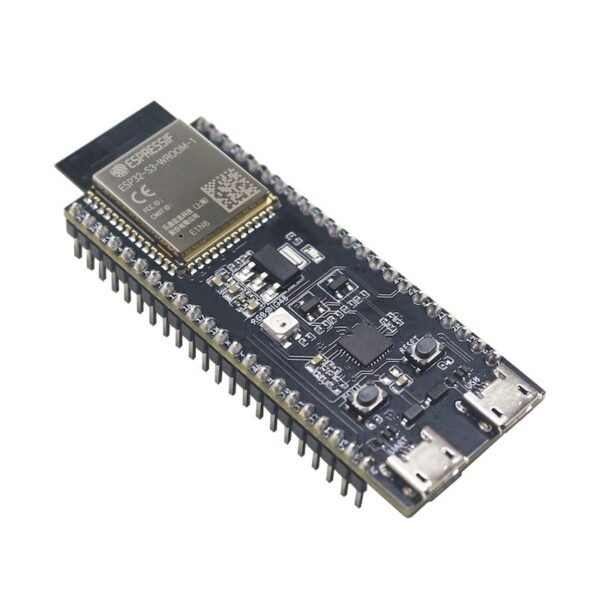

✅ Product Name: ESP32-S3-DevKitC-1 Development Board ✅ Core Module: ESP32-S3-WROOM-1, ESP32-S3-WROOM-1U, or ESP32-S3-WROOM-2 Wi-Fi + Bluetooth Low Energy MCU modules with neural network and signal processing acceleration ✅ Connectivity: Wi-Fi 802.11 b/g/n, Bluetooth Low Energy, full-speed USB OTG interface, JTAG debugging support ✅ I/O: Most GPIO pins broken out to pin headers for easy peripheral connection and breadboard compatibility ✅ Power: 5 V to 3.3 V LDO regulator, USB-powered, 3.3 V Power On LED indicator ✅ Interfaces: Micro-USB port for power, firmware flashing, and USB-to-UART communication; USB-to-UART bridge supporting up to 3 Mbps ✅ Features: Boot (Download) button, Reset button, addressable RGB LED driven by GPIO38, support for external antenna (on ESP32-S3-WROOM-1U)
ESP32-S3-DevKitC-1 is an entry-level development board designed for easy prototyping of Wi-Fi and Bluetooth Low Energy applications. It provides simple access to GPIOs, supports USB-based firmware flashing, and includes features like an RGB LED and neural network acceleration for AI and IoT projects.
Weight
15 g
Dimensions
52 × 27 × 15 mm
