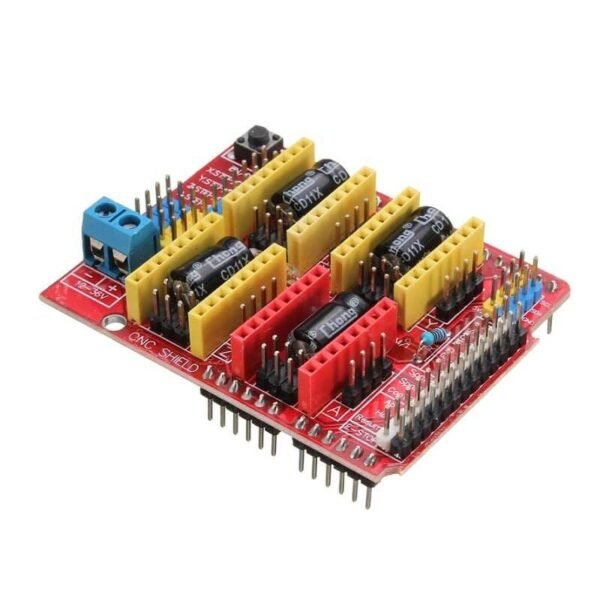

Arduino CNC Shield V3

Arduino CNC Shield V3

Rs 600.00

✅ Firmware Compatibility: GRBL 0.9 (open-source G-code interpreter for Arduino Uno/Mega)
✅ Axis Control: 4-axis support (X, Y, Z, A — duplicate or independent 4th axis with custom firmware)
✅ Endstop Inputs: 2 per axis (6 total) for homing and limit switch support
✅ Coolant Control: Dedicated output pin for spindle coolant or mist system enable
✅ Stepper Driver Support: Removable driver sockets (A4988, DRV8825, and other pin-compatible modules, not included)
✅ Micro-Stepping Configuration: Jumper selectable (up to 1/32 depending on driver used)
✅ Motor Connections: 4-pin Molex connectors or solder pads for direct wiring
✅ Operating Voltage Range: 12 V to 36 V DC (note: only DRV8825 drivers support up to 36 V)
✅ Board Format: Compact Arduino shield design (UNO/Mega form factor)
✅ Applications: CNC routers, laser cutters, engraving machines, robotics, pick-and-place systems, and general linear motion projects

1 in stock

SKU: AV10207 Category: Tags: , , , ,

The Arduino CNC Shield (SKU: DRV1001) is a compact, easy-to-use expansion board that turns an Arduino into a ready-to-run CNC controller. Designed for hobbyists and rapid prototyping, it runs open-source GRBL firmware and, when paired with an Arduino Uno or Mega and four removable stepper-driver modules, provides precise control of up to four stepper axes for routers, laser cutters, pick-and-place rigs, and other motion projects.

Applications
Ideal for DIY CNC routers, laser cutters, 3-axis (or 4-axis) milling and engraving machines, small pick-and-place platforms, and any project needing reliable low-voltage stepper control driven by an Arduino.

Quick note
Drivers and Arduino board are sold separately. When choosing a power supply and stepper driver, match the voltage/current specifications of your motors and driver modules (DRV8825 can tolerate higher voltages up to 36 V; A4988 is typically used at lower voltages).

Weight 2 g
Dimensions 68 × 54 × 30 mm
