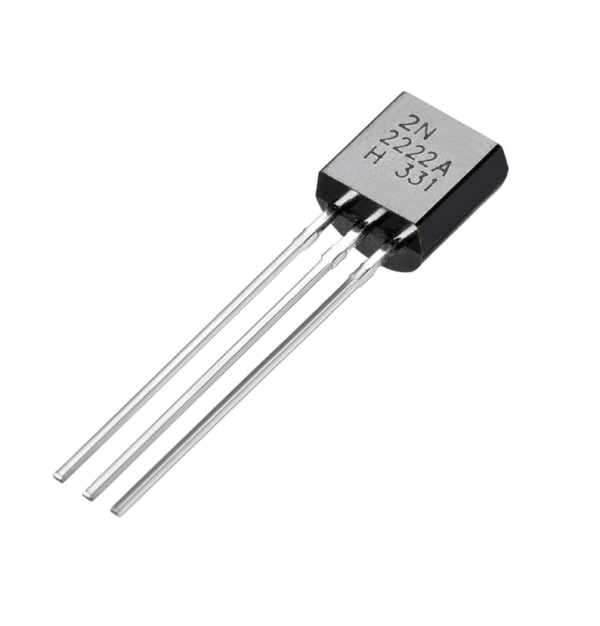

2N2222 NPN Transistor

✅ Model: 2N2222
✅ Package: TO-92 Plastic
✅ Collector-Emitter Voltage (VCEO): 40 V
✅ Collector-Base Voltage (VCBO): 75 V
✅ Emitter-Base Voltage (VEBO): 6 V
✅ Collector Current (IC): 600 mA
✅ Power Dissipation (TA = 25°C): 625 mW (derate 5 mW/°C above 25°C)
✅ Power Dissipation (TC = 25°C): 1.5 W (derate 12 mW/°C above 25°C)
✅ Junction & Storage Temperature Range: -55°C to +150°C
✅ Thermal Resistance: Junction-to-Ambient 200°C/W, Junction-to-Case 83.3°C/W
✅ Features: High-gain, general-purpose NPN transistor for switching and amplification
