The 1N5408 is a robust 3A rectifier diode suitable for general-purpose rectification in power supplies, inverters, converters, and freewheeling applications. Its high forward surge capability, low leakage, and durable DO-201AD epoxy package make it ideal for reliable, long-term use in electronic circuits.

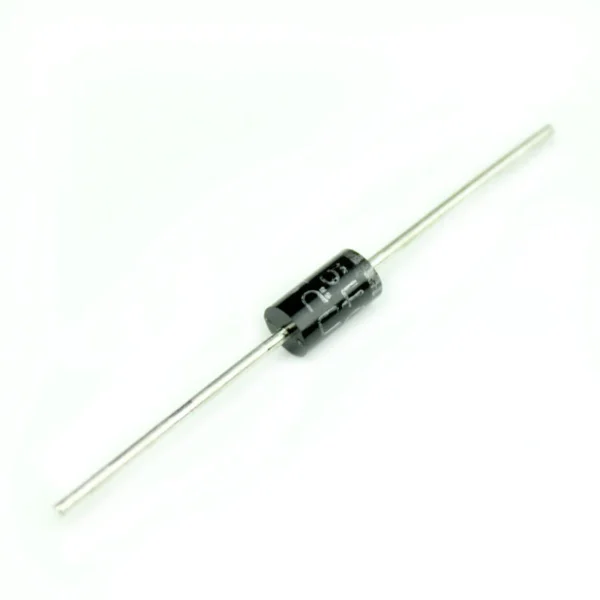

1N5408 Rectifier Diode (3A)
Rs 15.00
✅ Type: Rectifier Diode
✅ Maximum Forward Current: 3A
✅ Reverse Voltage: 50–1000V (depending on specific variant)
✅ Forward Voltage Drop: 1.2V (typical)
✅ Peak Forward Surge Current: 200A
✅ Leakage Current: 5 μA (typical)
✅ Maximum Junction Temperature: 150°C
✅ Package: DO-201AD, molded epoxy body
✅ Polarity: Color band denotes cathode
✅ Soldering: Dip solder up to 275°C for 10 s
50 in stock
| Weight | 2 g |
|---|---|
| Dimensions | 30 × 10 × 10 mm |
