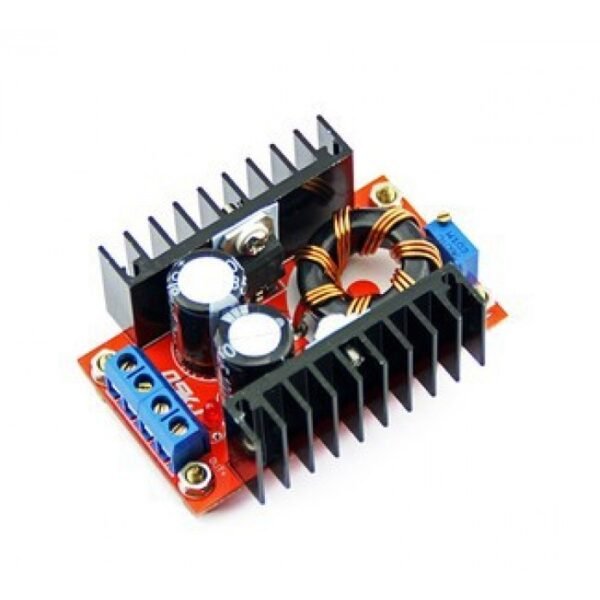

150W 6A DC-DC Boost Converter Module

✅ Module Type: Non-isolated Step-up (Boost) Module
✅ Module Size: 65 × 56.5 × 23 mm (L × W × H, including heat sink)
✅ Input Voltage: 10V DC
✅ Output Voltage: 12–35V DC, continuously adjustable (default 19V) or fixed (selectable at purchase)
✅ Output Current: 6A (MAX)
✅ Input Current: 10A (MAX)
✅ Output Power: 100W (natural cooling), 150W (with fan)
✅ Conversion Efficiency: ~94% (measured at 16V in, 25V out, reference only)
✅ Operating Temperature: -40°C to +85°C (full load temperature rise ~45°C)
✅ No-load Current: 25 mA typical
✅ Protections: No built-in short-circuit or reverse polarity protection (external protection recommended)
