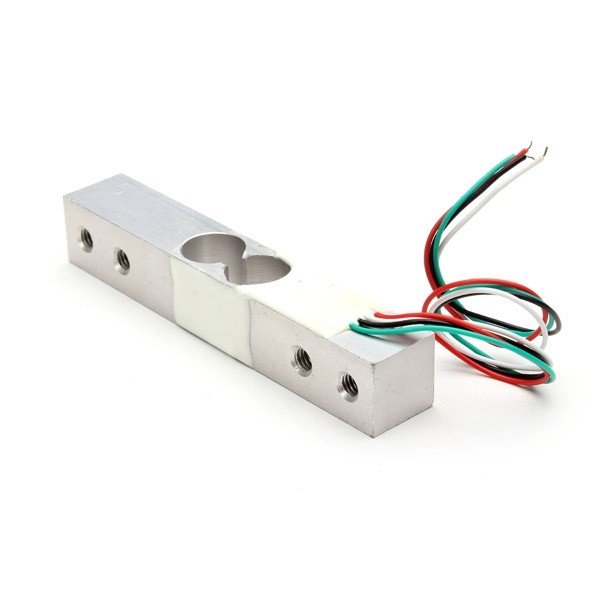

This load cell measures weight by converting the applied load into a small electrical signal. The signal is very low and requires amplification, typically using an HX711 module or an op-amp, to make it readable by microcontrollers like Arduino. It uses a Wheatstone bridge configuration with two fixed and two variable resistors. Ideal for digital weighing scales, force measurement projects, and DIY applications requiring precise weight detection.
10kg Load Cell Sensor
Rs 490.00
✅ Type: Load Cell (Weight Sensor)
✅ Maximum Load: 10 kg
✅ Supply Voltage: 5–10V
✅ Output Voltage: 2 ±0.1 mV/V
✅ Wiring: Black = Input-, Red = Input+, White = Output-, Green = Output+
✅ Dimensions: 12 × 13 × 75 mm
3 in stock
| Weight | 30 g |
|---|---|
| Dimensions | 75 × 13 × 12 mm |
